生產廠商：HQ Graphene

產品信息

1T-HfTe2 is a semimetal. The layers are stacked together via van der Waals interactions and can be exfoliated into thin 2D layers. Hafnium Ditelluride belongs to the group-IV transition metal dichalcogenides (TMDC).

The HfTe2 crystals produced at HQ Graphene have a lateral size of ~0.6-0.8 cm, hexagonal shape, and has a metallic appearance.

二碲化鉿晶體 HfTe2(Hafnium Telluride)
晶體尺寸：~10毫米
電學性能：半金屬
晶體結構：六邊形
晶胞參數：a = b = 0.395 nm, c = 0.666 nm, α = β = 90°, γ = 120°
晶體類型：合成
晶體純度：＞99.995%

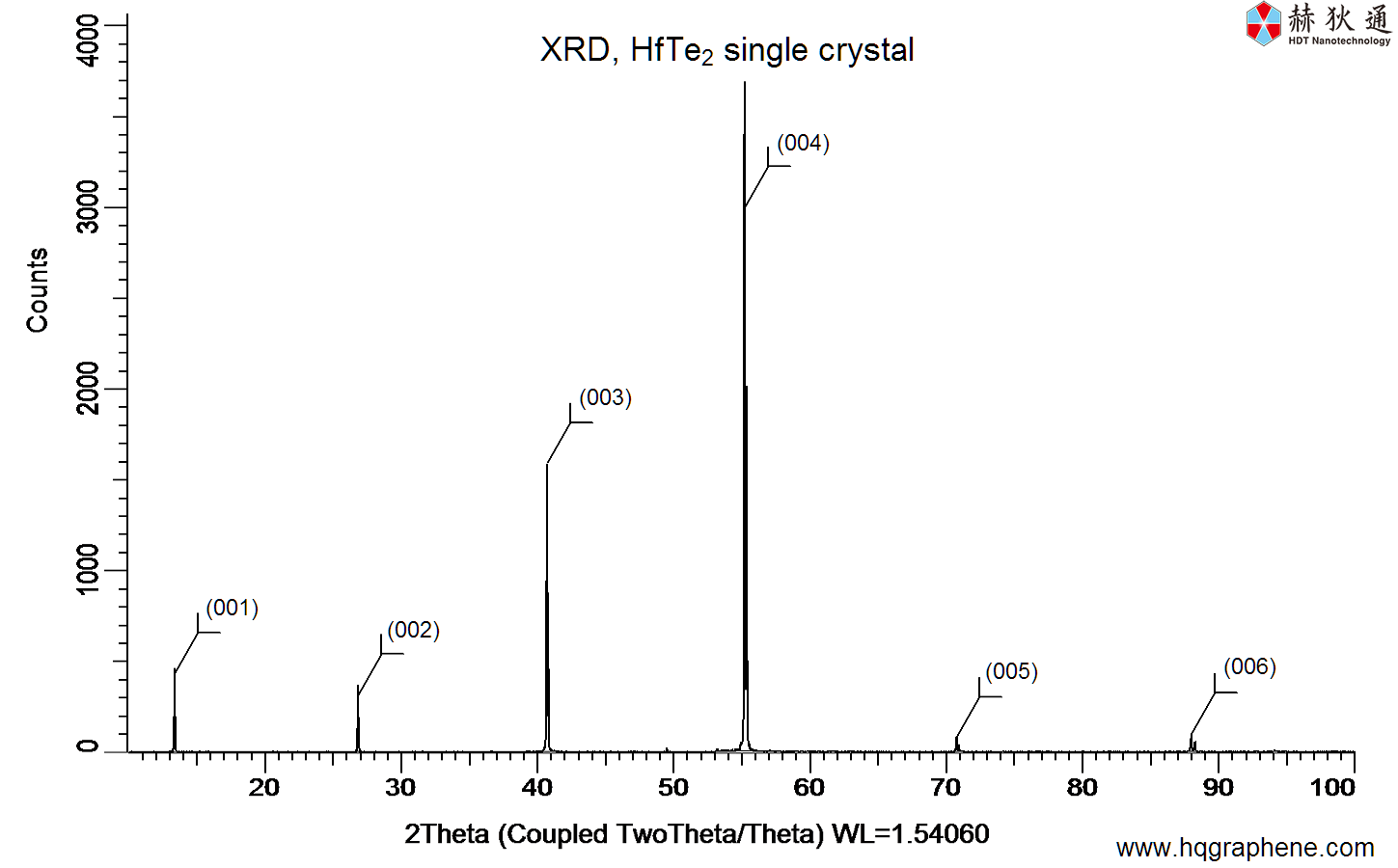

X-ray diffraction on a HfTe2 single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 6 XRD peaks correspond, from left to right, to (00l) with l = 1, 2, 3, 4, 5, 6

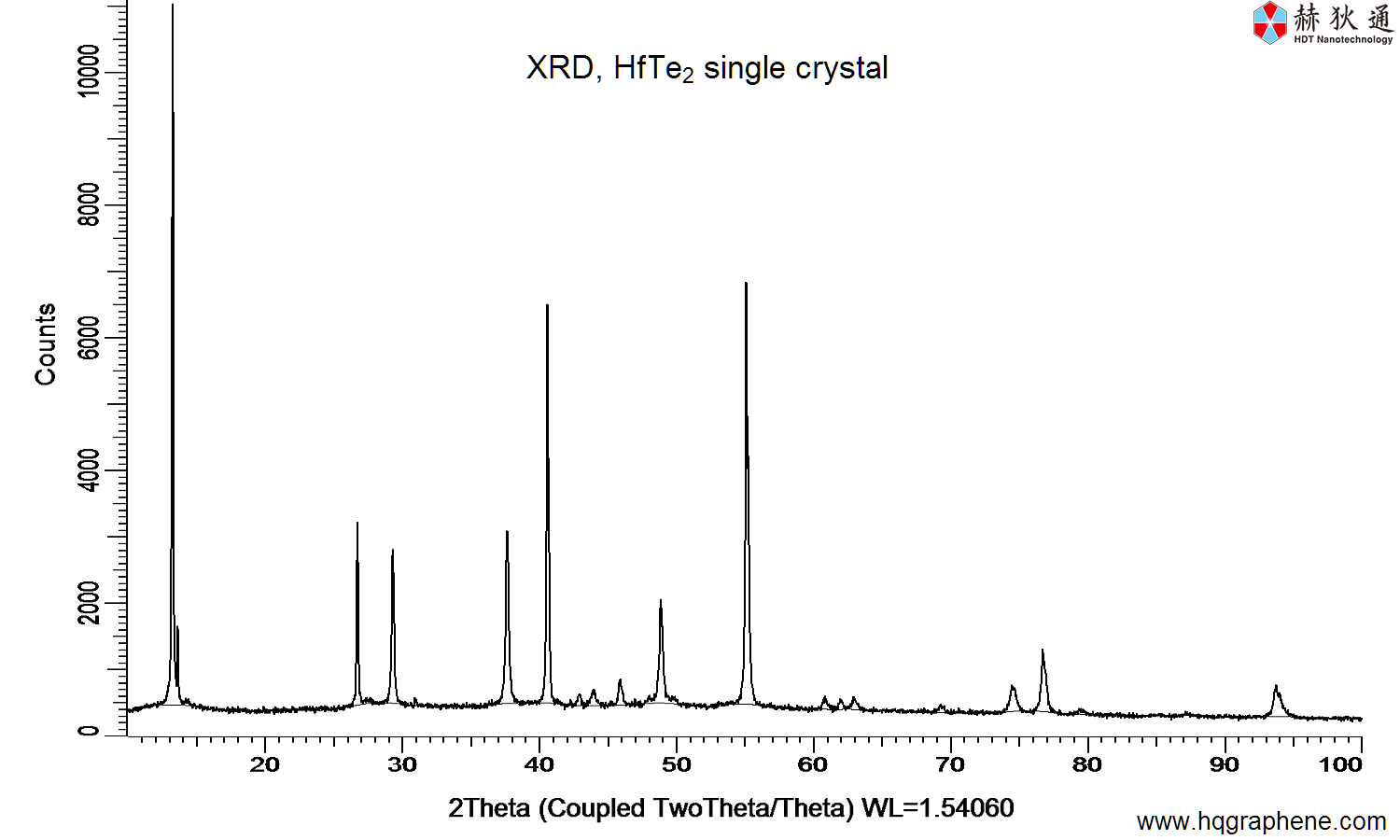

Powder X-ray diffraction (XRD) of a single crystal . X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

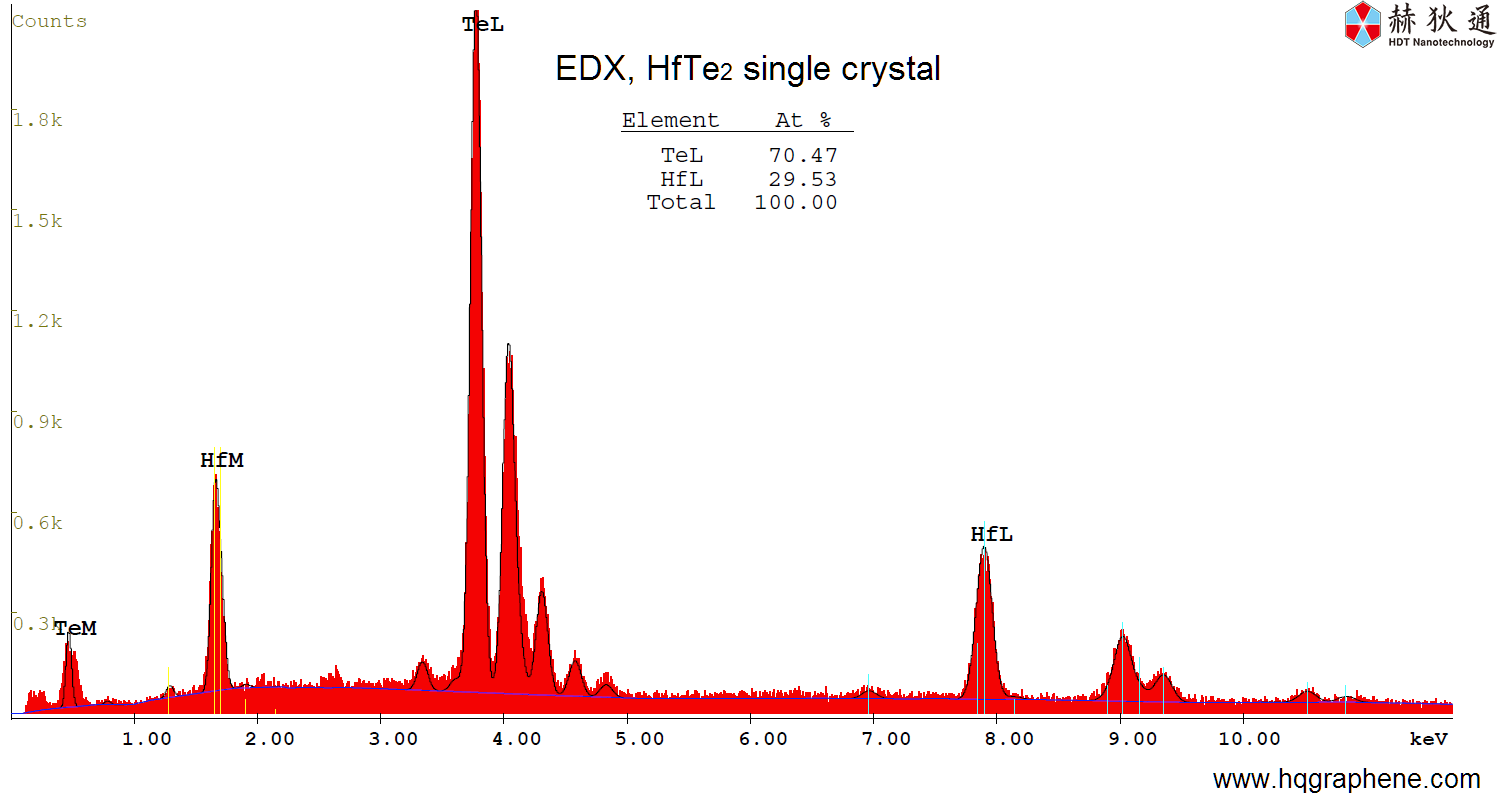

Stoichiometric analysis of a single crystal by Energy-dispersive X-ray spectroscopy (EDX).

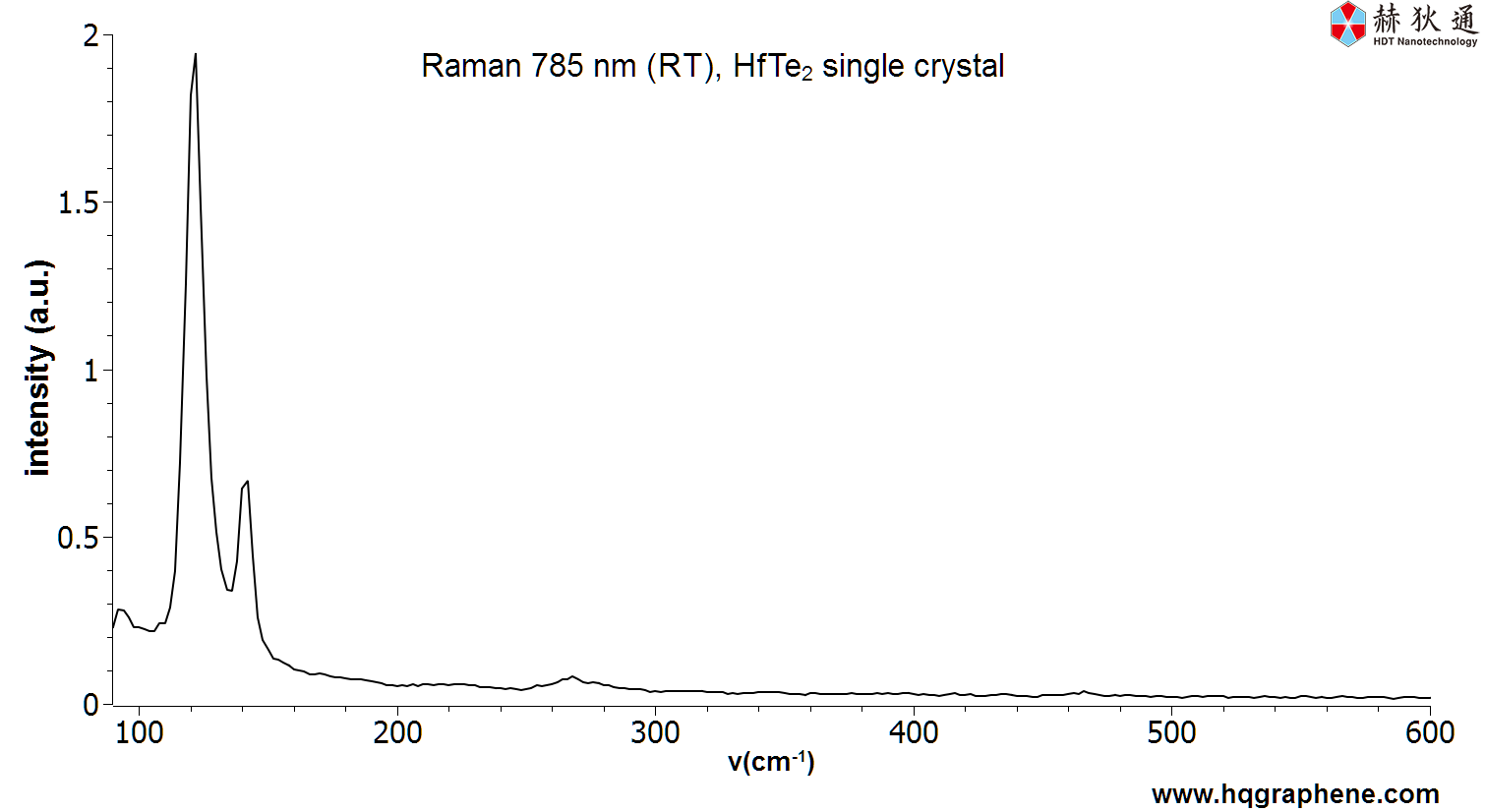

Raman spectrum of a single crystal . Measurement was performed with a 785 nm Raman system at room temperature.
