生產廠商：HQ Graphene

產品信息

CrBr3 is a ferromagnetic semiconductor 2D material having a Curie temperature of ~37K. The layers are stacked together via van der Waals interactions and can be exfoliated into thin 2D layers.
The CrBr3 crystals produced at HQ Graphene have a typical lateral size of ~0.6-0.8 cm, hexagonal shaped and have a metallic appearance. More information about the CrBr3 crystals we sell can be found below. 六方氮化硼晶體（20片裝） hBN(Hexagonal Boron Nitride)-Crystal
晶體尺寸：10毫米
電學性能：鐵磁體(Curie temperature ~37K)
晶體結構：六邊形
晶胞參數：a = 0.630nm，C = 1.838nm，α=β= 90°，γ= 120
晶體類型：合成
晶體純度：＞99.995%

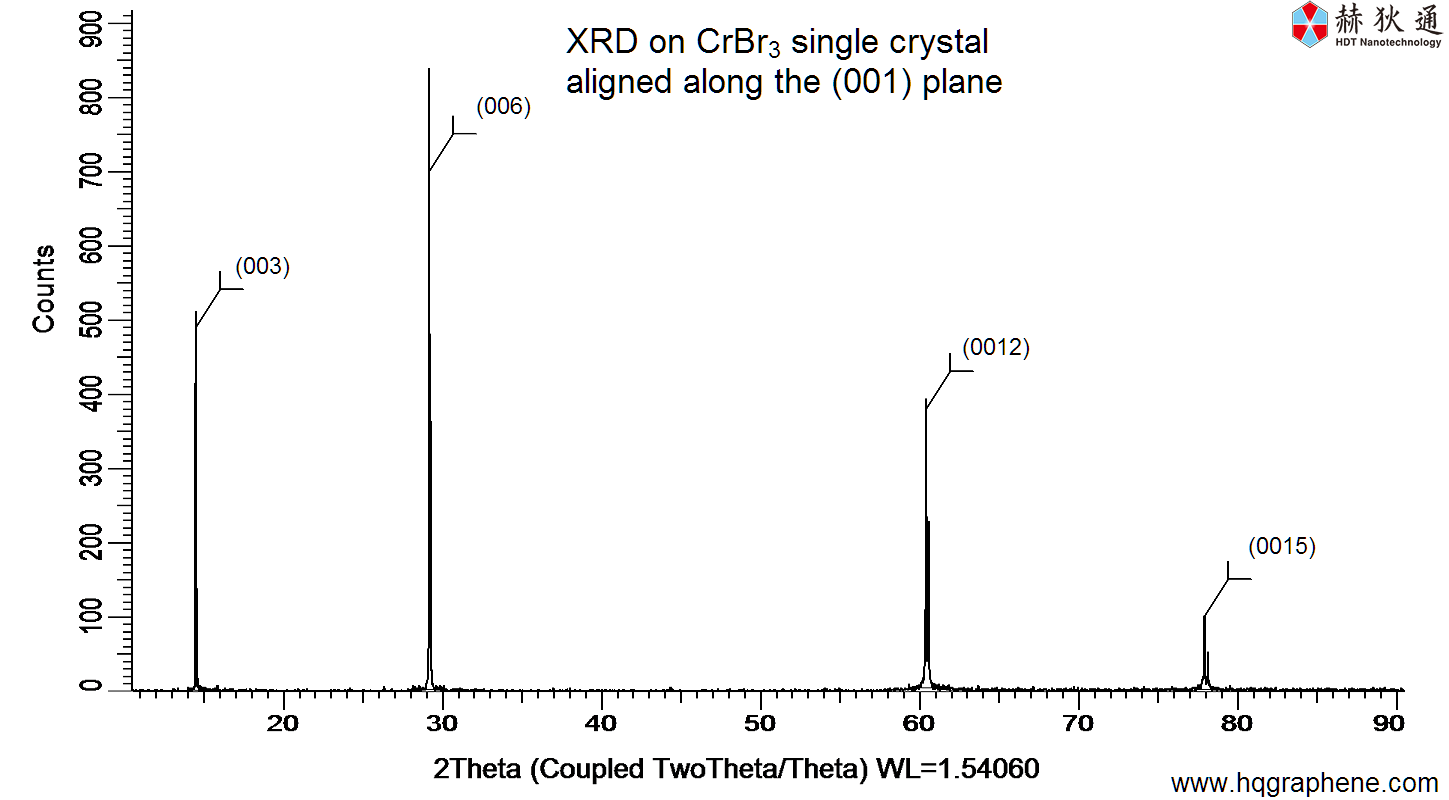

X-ray diffraction on a CrBr3 single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 4 XRD peaks correspond, from left to right, to (00l) with l = 3, 6, 12, 15

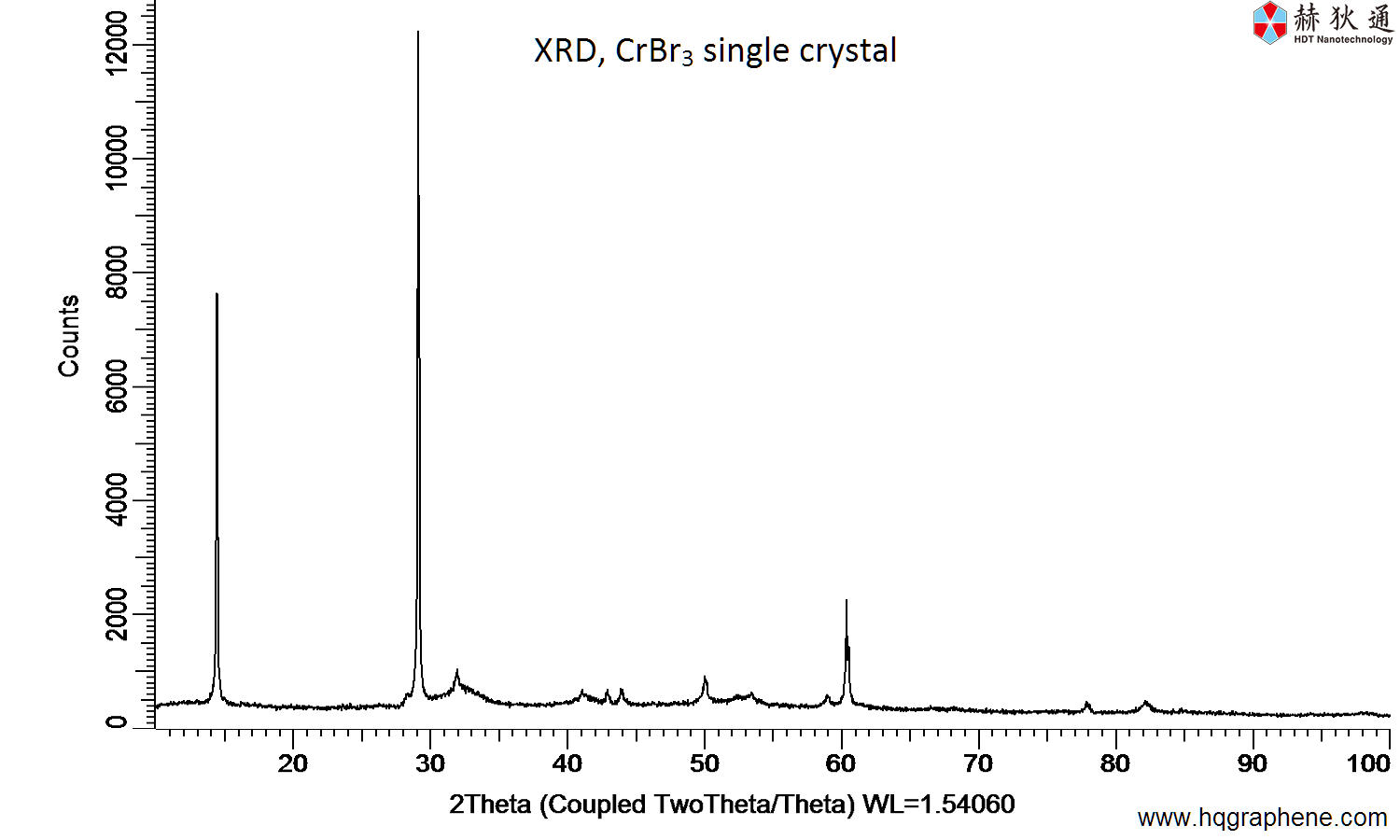

Powder X-ray diffraction (XRD) of a single crystal CrBr3. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

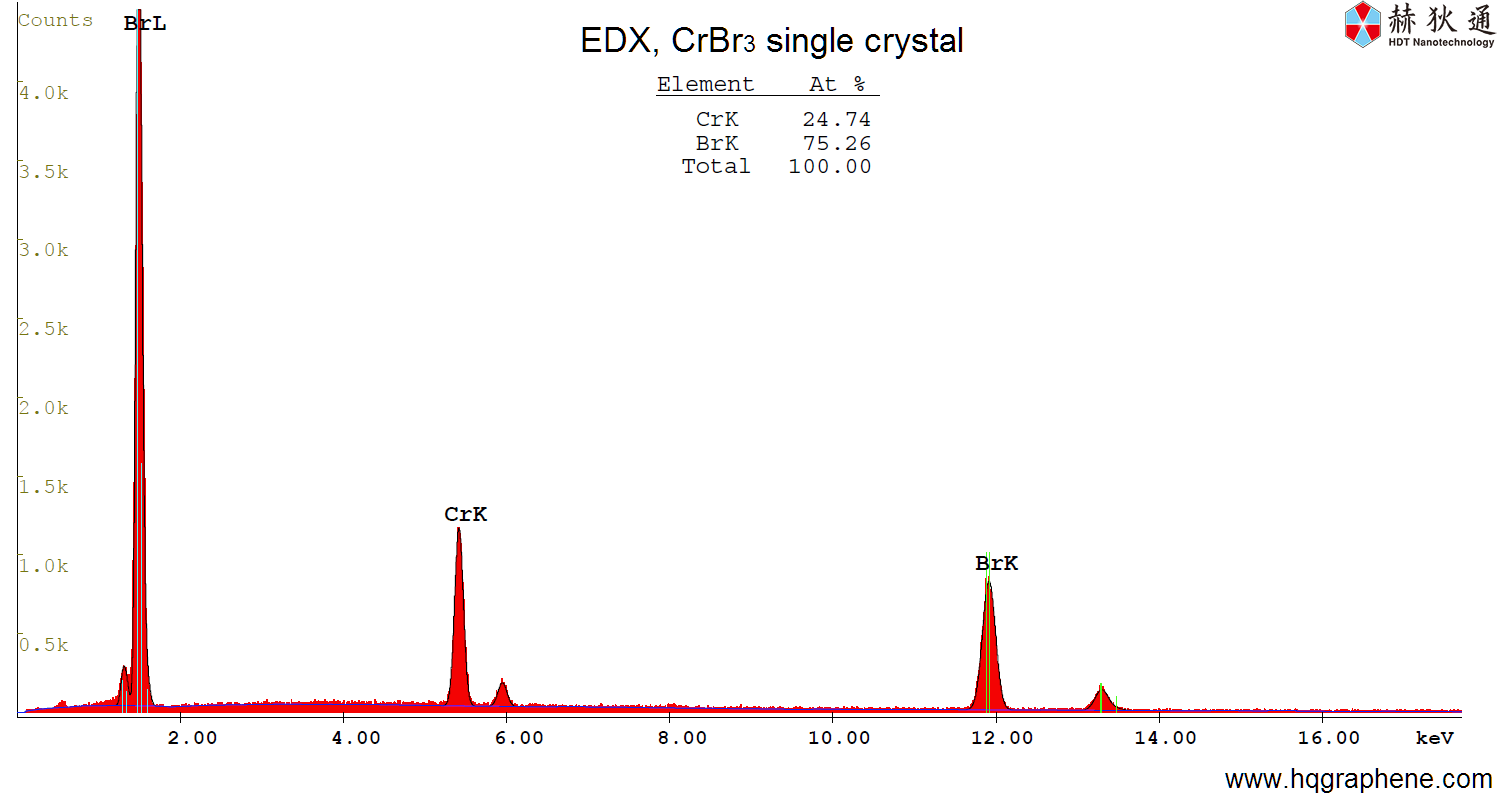

Stoichiometric analysis of a single crystal CrBr3 by Energy-dispersive X-ray spectroscopy (EDX).
